SAP Analytics Cloud and SAP S/4HANA Integration: An Enterprise Architecture Guide

Introduction

Most enterprises do not have a shortage of data—they have a shortage of connected, trusted, and usable information.

Operational data lives in SAP S/4HANA. Financial teams use planning models. Business users consume dashboards. Data may also flow through SAP BW/4HANA, SAP Datasphere, spreadsheets, and third-party applications. The challenge is rarely getting access to data. The challenge is deciding:

• Where should the data remain?
• Which system owns the business definition?
• When should data be accessed live versus replicated?
• Where should planning calculations happen?
• How can reporting and planning use consistent business semantics?

When these questions are not addressed architecturally, familiar problems appear: un-reconciled reports, multiple definitions of the same KPI, slow month-end cycles, and long debates over which number is “correct.”

The goal of this guide is to move beyond mere connectivity and establish a decision architecture where operational data, enterprise models, planning processes, and analytics each have a clear, governed responsibility.

1. Why Connected Analytics Matters

Historically, analytics was a linear, downstream process:

This traditional model breaks down when finance leaders require faster visibility into actual performance, managers need real-time variance analysis, and executives demand trusted metrics without manual reconciliation.

The architectural objective is shifting:

• From: Collect data → build reports → explain the past
• To: Connect operational data → govern business meaning → analyze performance → plan actions → support decisions

2. Modern Enterprise Architecture Landscape

Modern SAP analytics is non-linear. SAC can consume data directly from S/4HANA for operational scenarios, pull governed models from BW/4HANA or SAP Datasphere for cross-system analysis, or manage planning models that combine actuals with forecasts.

• SAP S/4HANA: Operational transactions and operational truth.
• Enterprise Data Layer (BW/4HANA / SAP Datasphere): Data integration, historical storage, and cross-system harmonization.
• SAP Analytics Cloud: Analytics, SAC Planning, and decision support.
• Business Action: AI-assisted insights translating into operational decisions.

3. Primary Integration Patterns

Selecting the correct integration pattern determines both performance and functional flexibility.

Live Connection Pattern

• Mechanism: Direct analytical query consumption via CDS views
• Primary Use Case: Operational dashboards, real-time analytics
• Key Advantage: Zero data replication; single source of truth
• Architectural Consideration: Query design, CDS view tuning, and system workload dictate speed.

Import Data Pattern

• Mechanism: Data extraction via OData services into SAC models
• Primary Use Case: SAC Planning, simulations, cross-source models
• Key Advantage: Full access to SAC planning engine and data actions
• Architectural Consideration: Requires refresh scheduling, latency management, and master data sync.

4. The Enterprise Data Layer: BW/4HANA & SAP Datasphere

• SAP BW/4HANA: Remains vital for mature EDW landscapes, complex historical data structures, and heavily governed enterprise reporting across non-SAP legacy systems.
• SAP Datasphere: Serves as the modern semantic and harmonization layer for cross-domain integration. SAC connects live to Datasphere to consume Analytic Models without replicating data.

Architectural Rule of Thumb: Do not introduce Datasphere or BW/4HANA solely for simple operational reporting that S/4HANA CDS views can handle directly. Match the architecture to the complexity of the business requirement.

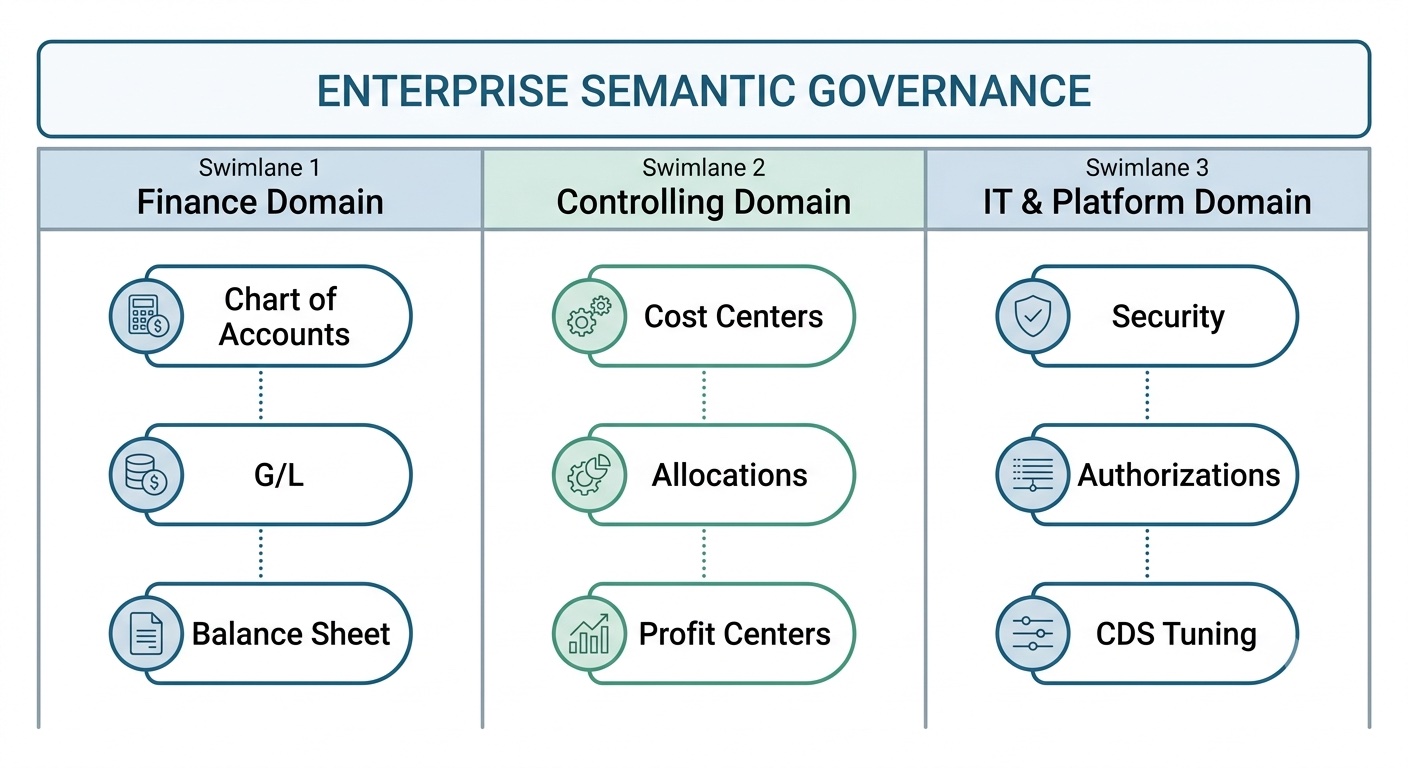

5. Core Data Modeling & Governance Principles

• Clear Data Ownership: Finance owns financial definitions; Controlling owns allocation logic; IT owns platform operations.
• Consistent Business Semantics: Metrics like Gross Margin (Margin = Revenue - COGS) must be defined centrally in the semantic layer, not recalculated independently inside individual SAC stories.
• Hierarchy Design: Structure hierarchies around actual management reporting needs rather than arbitrary technical levels or legacy ERP table layouts.

6. Security and Authorization Architecture

Security must be designed end-to-end across all access vectors:

• Live Connections: Leverage S/4HANA PFCG roles and analytical privileges directly at the source.
• Import Models: Require SAC Data Access Control (DAC) and role-based security configurations.

Users should see identical data slices regardless of whether they access a live operational dashboard or a consolidated planning story.

7. Common Architectural Pitfalls

1. Forcing One Connectivity Pattern: Applying live connections to complex multi-year planning, or importing every operational table into SAC.
2. Treating CDS Design as an Afterthought: Poorly designed CDS views lead to severe performance bottlenecks in live SAC dashboards.
3. Neglecting Business Ownership Post-Go-Live: Leaving KPI definitions and hierarchy maintenance without designated business owners.
4. Designing Performance Post-Go-Live: Failing to test concurrency, data volumes, and aggregation layers early in the project life cycle.

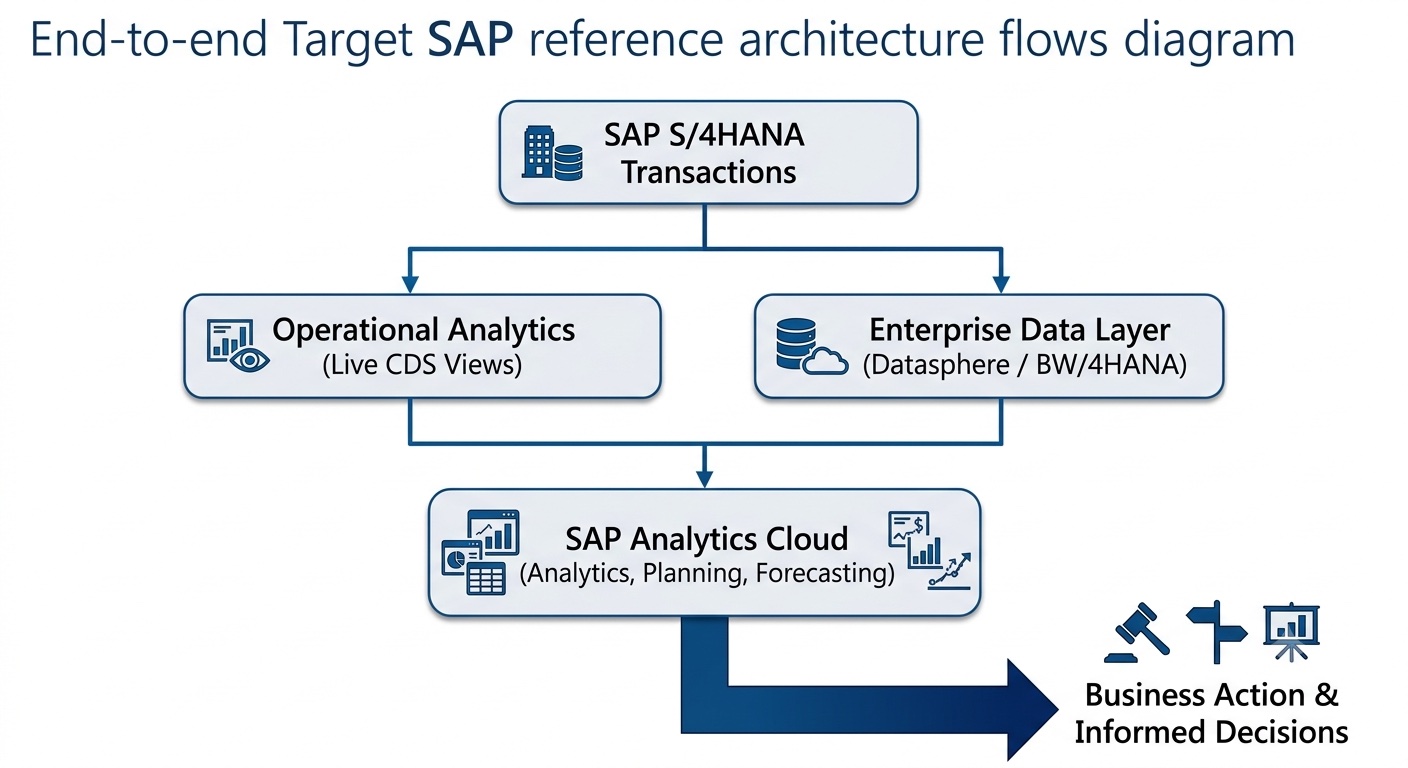

8. Practical Reference Architecture

Conclusion

Integrating SAP S/4HANA with SAP Analytics Cloud is an enterprise architecture strategy, not a simple configuration step. Organizations that succeed choose connectivity patterns based on specific use cases, govern semantics centrally, and align operational reporting with enterprise planning.
